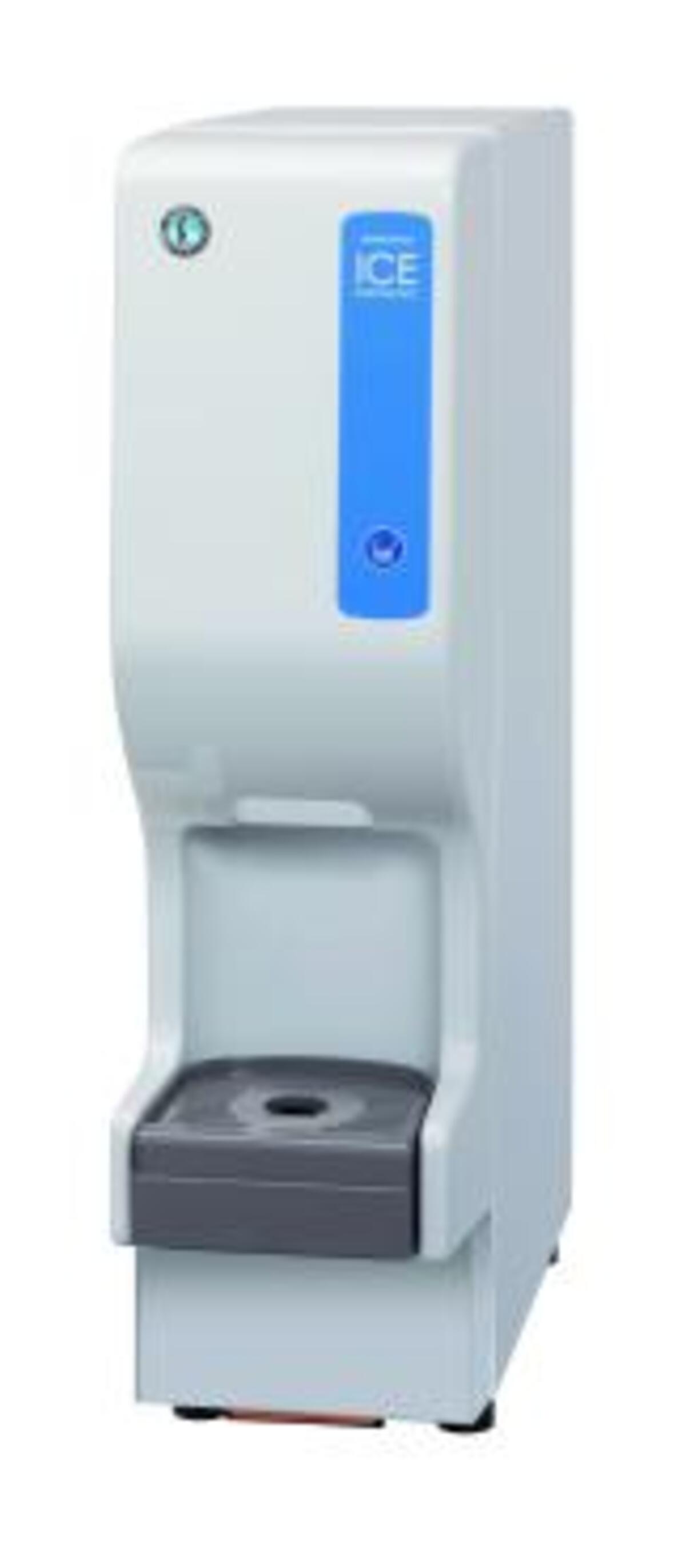

The Hoshizaki DSM-12DE Ice Dispenser, 13kg/24hrs Output / 3kg Storage is a compact commercial shuttle ice dispenser designed for healthcare institutions, hospitals and food service establishments requiring efficient self-service ice and water combinations. It provides an ice production capacity of up to 13kg per 24 hours alongside a built-in storage bin capacity of 3kg, delivering portion-controlled shuttle ice servings from a space-saving footprint.
Operating with an air-cooled cooling system, this unit uses eco-friendly R134a refrigerant to maintain consistent ice production. The dispenser functions in ambient temperatures between 5°C and 40°C with water supply temperatures from 5°C to 35°C, featuring a removable air filter for routine maintenance and single-button operation for hygienic portion control.
- Product type: Shuttle ice dispenser
- Brand: Hoshizaki
- Output: 13 kg per 24 hours
- Storage bin capacity: 3 kg
- Colour: Stainless Steel
- Exterior material: Acrylic baked steel cabinet with ABS molding front and back panel
- Push-button dispensing for hygienic self-service
- Intuitive portion control to regulate consumption and reduce waste
- Sealed design prevents air or water from hitting stored ice
- Air filter included
- Plug-and-play setup
- Ice type: Shuttle ice
- Cooling system: Air cooled
- Refrigerant: R134a (0.08 kg)
- Electric consumption: 0.2 kW
- Ambient temperature range: 5°C to 40°C
- Water supply pressure range: 0.05 MPa to 0.78 MPa (0.5 bar to 7.8 bar)
- Water supply temperature range: 5°C to 35°C
- Electrical circuit breaker protection: 5 A
- Accessories included: Installation kit, instruction manual, inlet hose, drain hose, Rc1/2-G3/4 nipple
- Power supply: 220-240 V, 1 phase, 50 Hz
- Product weight: 26 kg
- Packed weight: 28 kg
- Dimensions - H-69.5 W-18 D-52.7
- Packed dimensions - H-74.8 W-24.4 D-62
- Two-year parts and labour warranty
| Brand |
Hoshizaki |
| Model SKU |
DSM-12DE |
| Ice Production |
13 kg per 24 hours |
| Storage Capacity |
3 kg |
| Ice Type |
Shuttle ice |
| Cooling System |
Air cooled |
| Refrigerant |
R134a (0.08 kg) |
| Power Supply |
220-240V / 50Hz |
| Electric Consumption |
0.2 kW |
| Product Weight |
26 kg |
| Packed Weight |
28 kg |
| Dimensions |
69.5cm (H) x 18cm (W) x 52.7cm (D) |
| Packed Dimensions |
74.8cm (H) x 24.4cm (W) x 62cm (D) |
| Warranty |
2 Years Parts & Labour |
