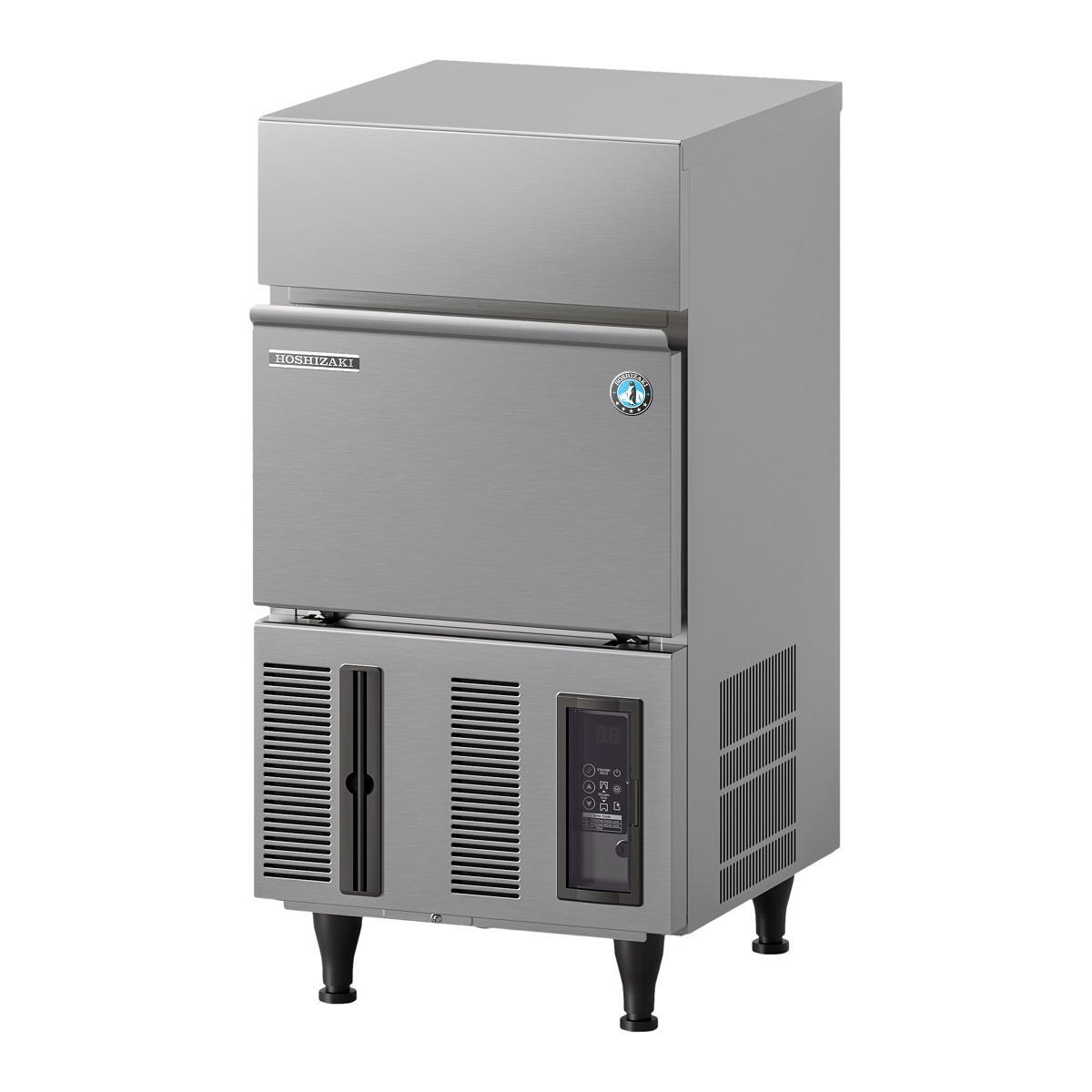

The Hoshizaki IM UltraCUBE IM-30CWPE-U-25 30kg Self Contained Cuber is a commercial ice maker designed for professional catering and hospitality environments requiring hygienic, high-quality ice production. Capable of producing up to 30 kg of small ice cubes per 24 hours alongside an integrated 11.5 kg storage bin, this unit provides a reliable supply of fresh ice while maintaining compact external dimensions.
A closed cell system forms individual ice cubes, while a water-cooled system and R290 refrigerant support efficient cooling between 1°C and 40°C ambient temperatures. Automated cleaning and UV-C sanitization protect the water circuit, complemented by notifications for condenser and water circuit maintenance.
- Product type: Cube icemaker
- Brand: Hoshizaki
- Range: IM UltraCUBE
- Ice production: Up to 30 kg per 24 hours
- Storage bin capacity: 11.5 kg

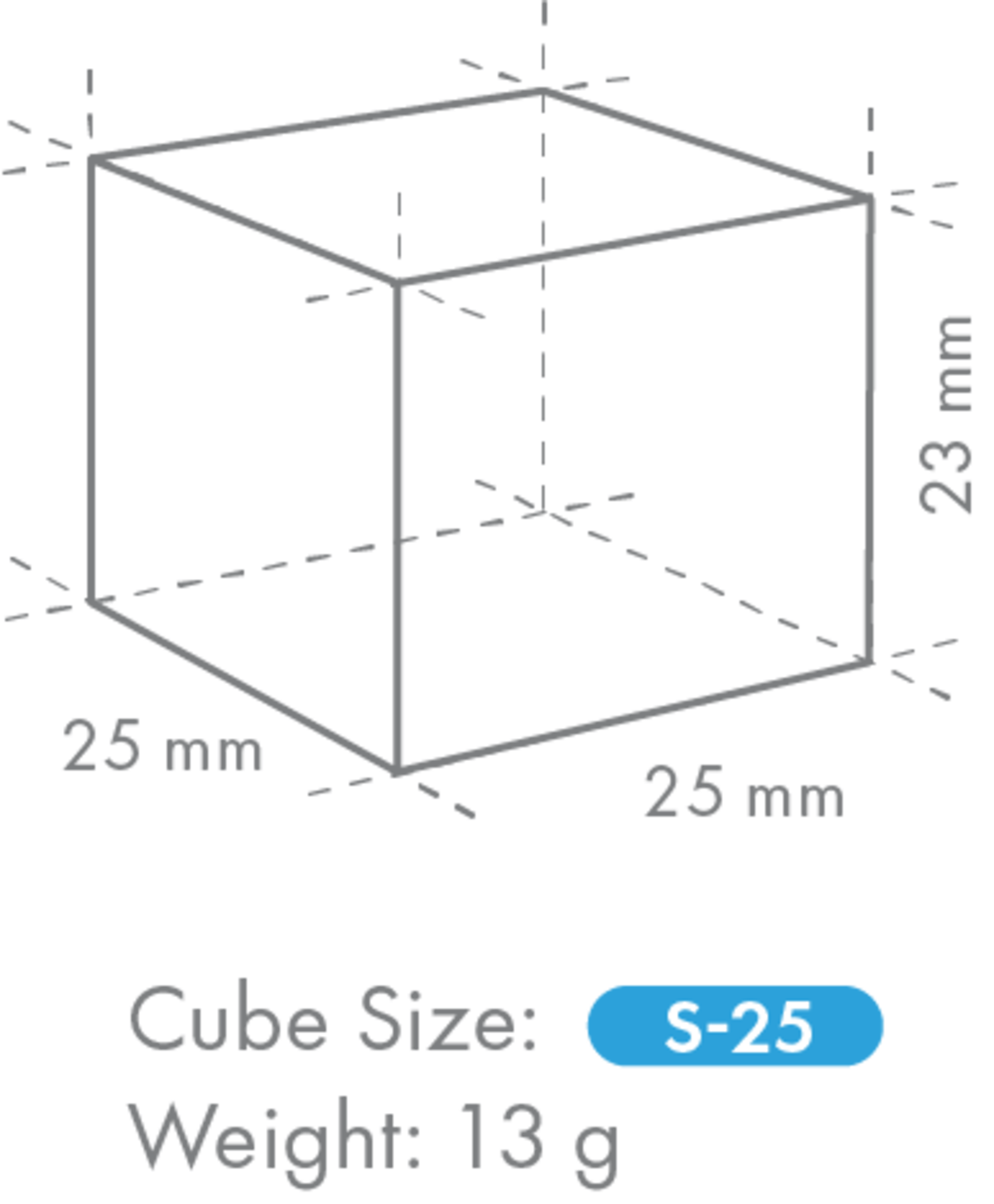

- Ice type: Small cubes - 25
- Exterior: Stainless steel AISI 441 and galvanized steel rear
- Internal components: Food-grade stainless steel AISI 430
- Closed cell system for individual cube forming
- Automated cleaning function
- UV-C sanitization mechanism
- Variable speed magnetic DC pump motor
- Water circuit cleaning notification
- Condenser cleaning notification
- Control panel for adjustable dimple size
- Removable water tank and DC pump
- Stand-by function
- Ambient temperature range: 1°C to 40°C
- Cooling system: Water cooled
- Refrigerant: R290 (0.07 kg)
- Accessories included: Installation kit, legs and scoop
- Electrical supply: 220-240 V, 50 Hz
- Electric consumption: 0.175 kW
- Electrical circuit breaker protection: 5 A
- Product weight: 37 kg
- Packed weight: 43 kg
- Dimensions - H-69.5 W-39.8 D-46.1
- Packed dimensions - H-86.2 W-50.5 D-57.5
- Three-year parts and labour warranty
| Brand |
Hoshizaki |
| Model name |
IM-30CWPE-U-25 |
| Item number / SKU |
M110-D203 |
| Sub series |
IM UltraCUBE |
| Ice production |
30 kg per 24 hours |
| Storage bin capacity |
11.5 kg |
| Ice type |
Small cubes - 25 |
| Cooling system |
Water Cooled |
| Refrigerant type |
R290 |
| Refrigerant weight |
0.07 kg |
| Electric consumption |
0.175 kW |
| Power supply |
1/220 - 240V/50Hz |
| Electrical circuit breaker protection |
5 A |
| Ambient temperature range |
1 °C to 40 °C |
| Water supply temperature range |
5 °C to 35 °C |
| Water supply pressure range |
0.07MPa (0.7bar) to 0.8MPa (8bar) |
| Exterior material |
Stainless steel AISI 441, Galvanized steel (Rear) |
| Functions |
Automated cleaning, UV-C sanitization |
| Net weight |
37 kg |
| Gross weight |
43 kg |
| Dimensions |
H-695 mm W-398 mm D-461 mm |
| Packed dimensions |
H-862 mm W-505 mm D-575 mm |
| Warranty period |
3 Years on Parts & Labour - based on country agreement |
