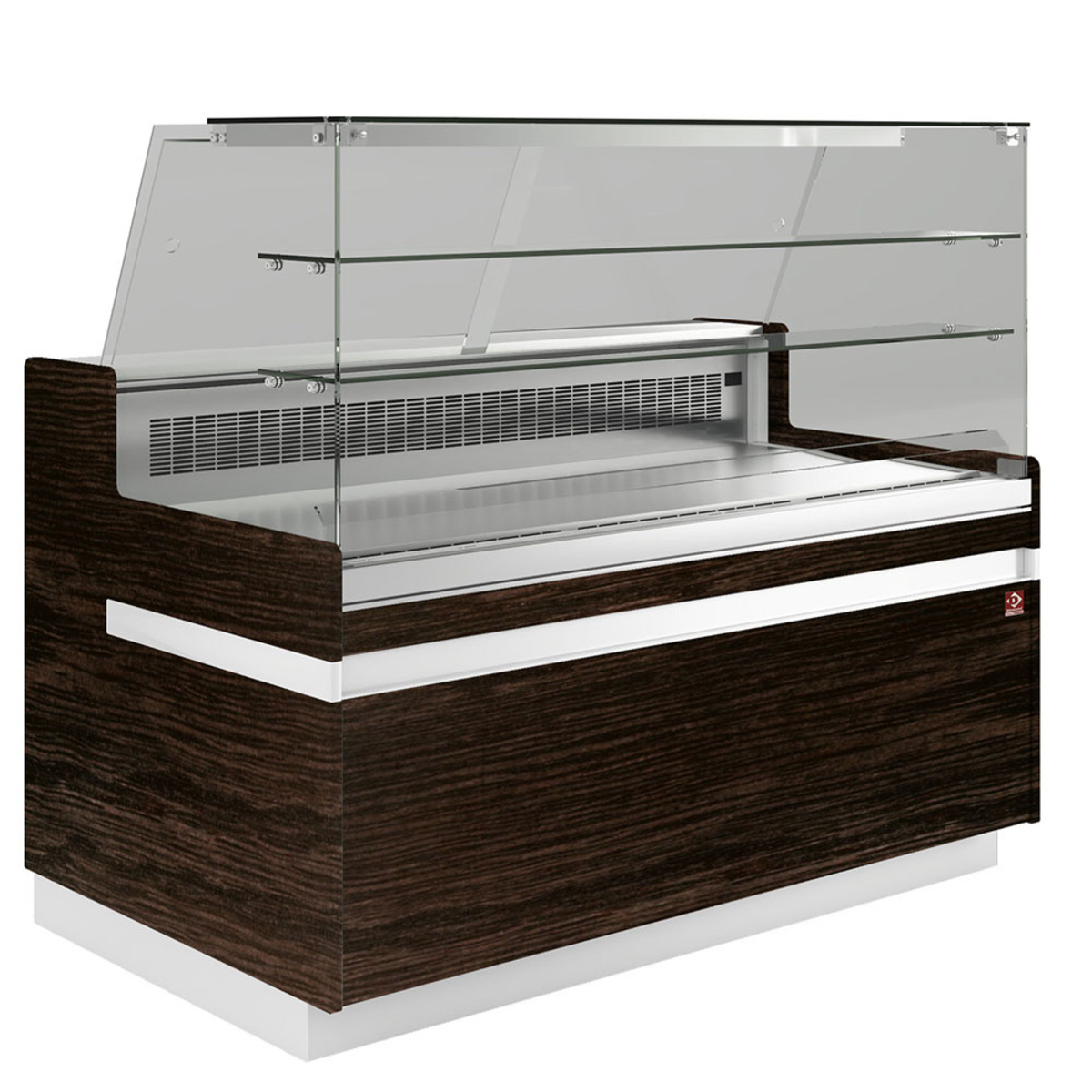

The Diamond VA10XE2/R2 Patisserie Display Counter, 1038mm is designed for commercial bakery, catering and food retail environments requiring organized refrigerated presentation. Featuring a 1038mm width and a 604mm deep AISI 304 stainless steel display deck compatible with EURONORM and GASTRONORM containers, this counter offers clear product visibility across two intermediate shelves alongside the main display level to effectively showcase chilled food items.
Ventilated cooling distributes chilled air via a Plexiglas deflector to maintain consistent temperatures between +2°C and +6°C. The system utilizes R290 refrigerant, a built-in compressor unit and a ventilated evaporator protected against acid corrosion. Automatic defrosting with condensate evaporation reduces manual maintenance, while low-voltage anti-fogging devices on the glass panes ensure unobstructed viewing.
- Product type: Patisserie Display Counter
- Brand: Diamond
- Showcase depth: 604 mm
- Colour: Stainless Steel
- Medium wood melamine side cheeks and front with ABS edge
- Charcoal-gray skirting and aluminium molding
- Stainless-steel working tablet
- AISI 304 stainless steel showcases with rounded corners and edges
- Extra Clear tempered glass panes with 90° opening and folding front pane
- Supporting structure intermediate shelf in AISI 304 stainless steel
- Frame made of plasticized steel sheet with CFC-free polyurethane insulation
- Adjustable stainless steel sliding feet
- Ventilated cooling system
- Integrated low-voltage 12V anti-fogging device in hinge and side panes
- Plexiglas deflector for homogeneous temperature distribution
- Double-row LED lighting with On-Off switch
- Service side sliding Plexiglas doors
- Removable color-treated stainless steel showcases
- Automatic defrosting with automatic evaporation of condensates
- Evaporator treated against corrosion from food acids
- Temperature range: +2°C to +6°C
- Refrigerant: R290
- Power rating: 460 W
- Climate class: 3
- Maximum ambient temperature: 25°C at 60% relative humidity
- Built in compliance with CE standards
- Number of shelves: 2 intermediate shelves
- Double row LED lighting with On-Off switch
- Voltage: 230 V
- Electrical supply: 230/1N 50Hz
- Product weight: 171 kg
- Dimensions - H-135.2 W-103.8 D-90.6
- One-year parts-only warranty
| Width |
1038 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product Weight |
171 kg |
| Temperature Range |
+2°C to +6°C |
| Refrigerant |
R290 |
| Climate Class |
3 |
| Max Ambient Temperature |
25°C at 60% relative humidity |
| Number of Shelves |
2 |
| Power Supply |
230/1N 50HZ |
| Voltage |
230V |
| Wattage |
460W |
| Warranty |
1 Year Parts Only |
