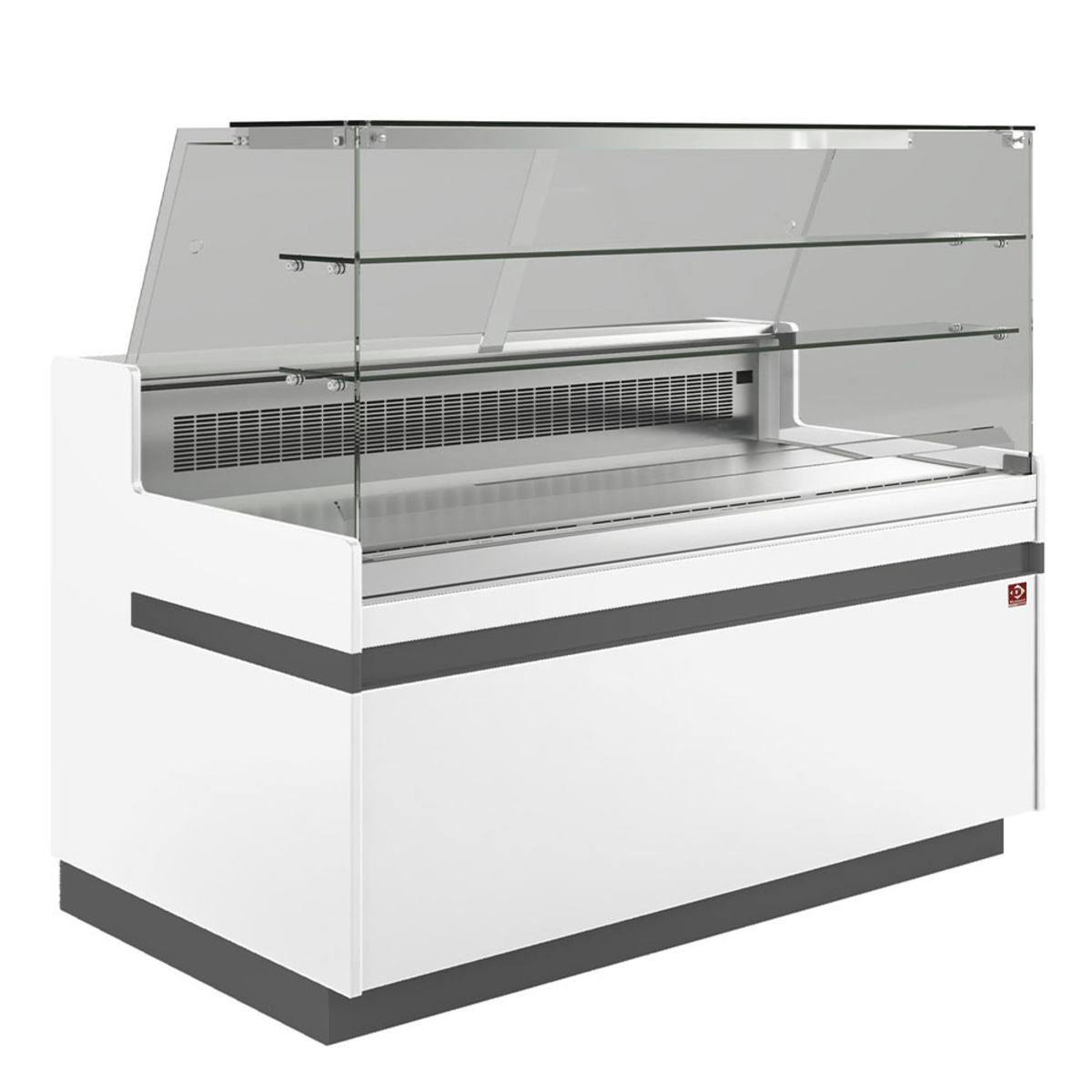

Diamond VA13XB2/R2 Patisserie Display Counter, 1338mm is a refrigerated display unit designed for commercial patisseries, bakeries and food service establishments requiring presented chilled storage. Featuring a width of 1338mm, a height of 1352mm and a depth of 906mm, this display counter includes two intermediate shelves alongside AISI 304 stainless steel EURONORM and GASTRONORM showcases that provide a 604mm deep display area for chilled produce.
Ventilated cooling circulates chilled air throughout the cabinet to ensure even temperature distribution, while automatic defrosting with condensate evaporation reduces maintenance. Operating between +2°C and +6°C using R290 refrigerant, the counter features a 540W power rating, built-in compressor and double row LED lighting.
- Product type: Patisserie Display Counter
- Brand: Diamond
- Showcase depth: 604mm
- 2 intermediate shelves
- Colour: Stainless Steel
- AISI 304 stainless steel showcases and intermediate shelf supporting structure
- Extra Clear tempered glass panes
- Stainless steel working tablet
- Frame made of plasticized steel sheet with CFC-free polyurethane insulation
- Ventilated cooling system
- Automatic defrosting with automatic evaporation of condensates
- 90° opening and folding front pane with safety stop and integrated 12V anti-fogging device
- Side panes with integrated 12V anti-fogging device
- Service side AISI 304 stainless steel working shelf with anti-fogging device
- Adjustable stainless steel sliding feet
- Built-in compressor unit
- Plexiglas deflector for homogeneous temperature distribution
- Temperature range: +2°C to +6°C
- Wattage: 540W
- Refrigerant: R290
- Climate class: 3
- Maximum ambient temperature: 25°C at 60% relative humidity
- Built in compliance with CE standards
- Sliding Plexiglas doors
- Double row LED lighting with On-Off switch
- Voltage: 230V
- Power supply: 230/1N 50Hz
- Product weight: 213 kg
- Dimensions - H-135.2 W-133.8 D-90.6
- One-year parts only warranty
| Brand |
Diamond |
| Model SKU |
VA13XB2-R2 |
| Product Type |
Patisserie Display Counter |
| Width |
1338mm |
| Depth |
906mm |
| Height |
1352mm |
| Showcase Depth |
604mm |
| Product Weight |
213 kg |
| Temperature Range |
+2°C to +6°C |
| Wattage |
540W |
| Voltage |
230V |
| Power Supply |
230/1N 50HZ |
| Refrigerant |
R290 |
| Climate Class |
3 |
| Max Ambient Temperature |
25°C at 60% relative humidity |
| Number of Shelves |
2 |
| Warranty |
1 Year Parts Only |
