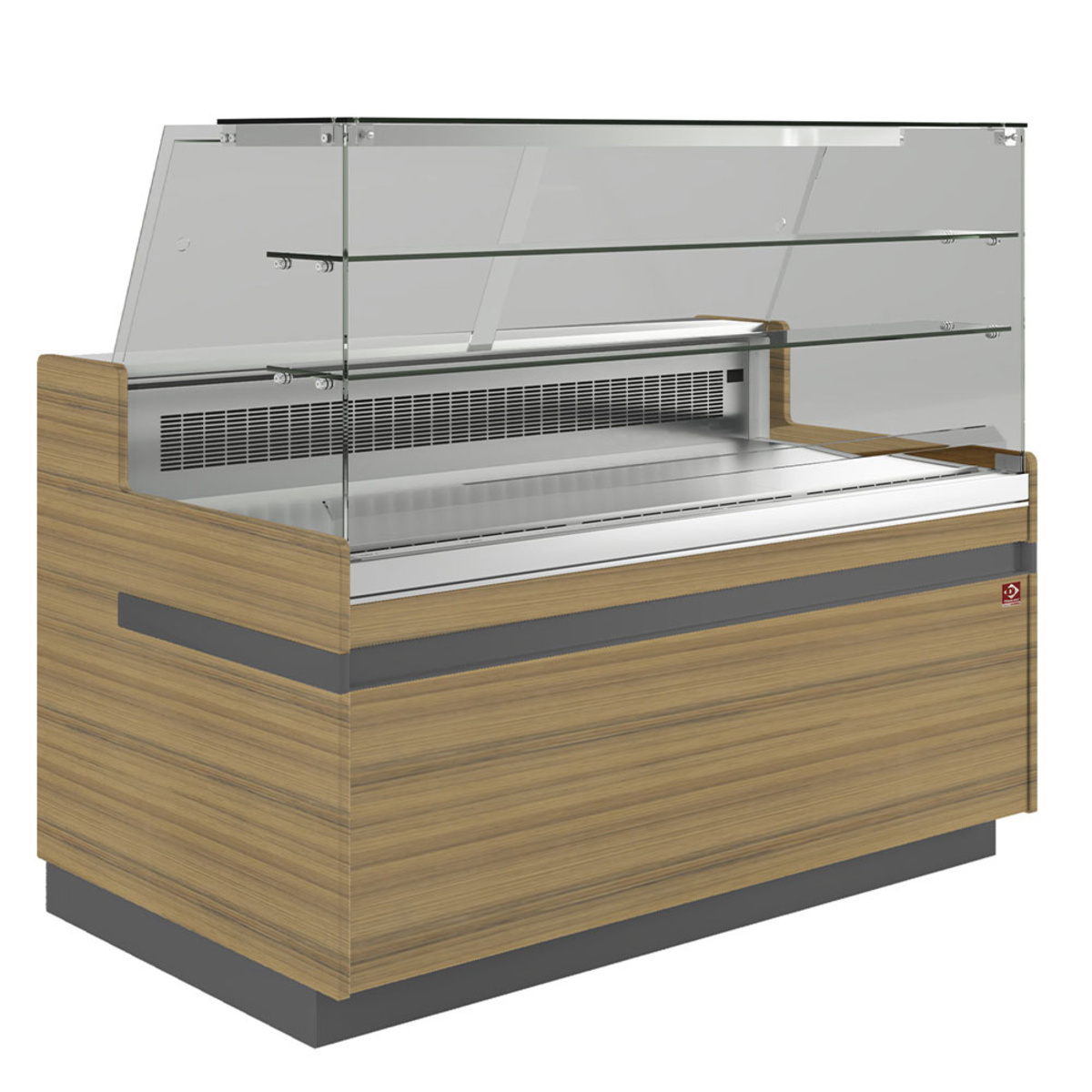

The Diamond Metrika VA10XF1/R2 1038mm Patisserie Display Counter is a commercial refrigerated display solution designed for bakeries, cafes, and food service establishments requiring presented chilled storage. Featuring a 1038mm width and a 604mm deep AISI 304 stainless steel display deck, it accommodates Euronorm and Gastronorm removable plates for desserts, cakes, pastries, salads, sandwiches, and beverages across two intermediate shelves and a main display showcase.
Ventilated cooling circulates air evenly via a corrosion-treated evaporator and Plexiglas deflector, operating between +2°C and +6°C in climate class 3 conditions up to 25°C ambient temperature. Automatic defrosting handles condensate evaporation, while double-row LED lighting, sliding Plexiglas rear doors, folding tempered glass front windows, and anti-fogging technology support daily service and maintenance.
- Product type: Patisserie Display Counter
- Brand: Diamond
- Range: Metrika
- Display deck depth: 604 mm
- AISI 304 stainless steel showcases and working shelf
- Frame made of plasticized steel sheet with CFC-free polyurethane insulation
- Wood side cheeks and front with melamine surface and ABS edge
- Ventilated cooling system with corrosion-treated evaporator
- Plexiglas deflector for homogeneous temperature distribution
- Extra Clear tempered glass high windows
- 90° opening and folding front pane with safety stop
- Integrated 12V low-voltage anti-fogging device on hinges, side panes, and service shelf
- Sliding Plexiglas rear doors
- Automatic defrosting with automatic condensate evaporation
- Adjustable stainless steel sliding feet
- Refrigerant: R290
- Temperature range: +2°C to +6°C
- Power rating: 460 W
- Climate class: 3
- Max ambient temperature: 25°C at 60% relative humidity
- Built in compliance with CE standards
- Number of doors: 2 sliding Plexiglas doors
- Number of shelves: 2 intermediate shelves
- Removable Anthracite colour display plates
- Double-row LED lighting with On-Off switch
- Power supply: 230 V / 1N / 50 Hz
- Product weight: 171 kg
- Dimensions - H-135.2 W-103.8 D-90.6
- One-year parts-only warranty
| Width |
1038 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product Weight |
171 kg |
| Cooling Type |
Ventilated |
| Defrost Type |
Automatic |
| Temperature Range |
+2°C to +6°C |
| Climate Class |
3 |
| Max Ambient Temperature |
25°C at 60% relative humidity |
| Refrigerant |
R290 |
| Wattage |
460 W |
| Voltage |
230 V |
| Power Supply |
230/1N 50HZ |
| Number of Shelves |
2 |
| Number of Doors |
2 |
| Warranty |
1 Year Parts Only |
