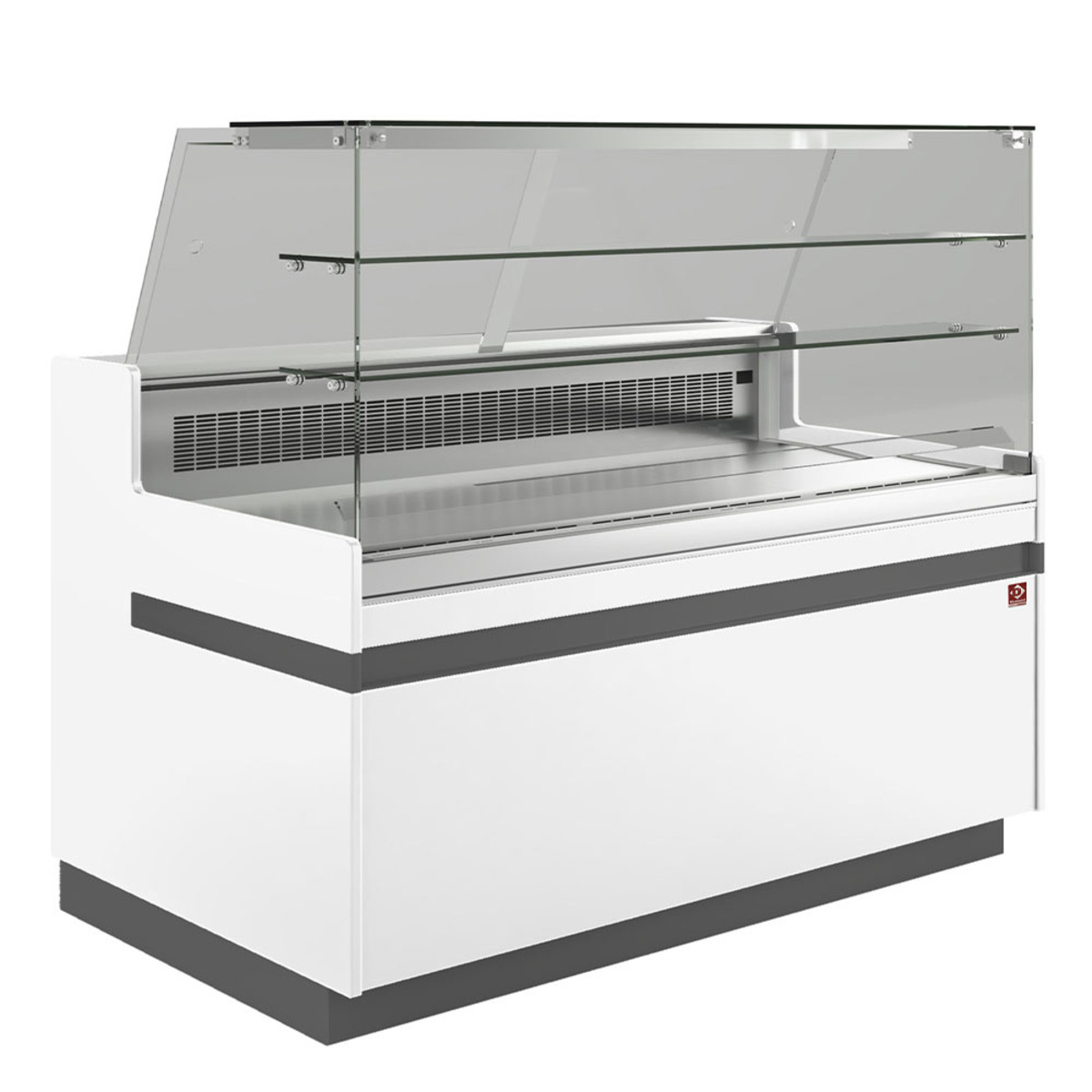

The Diamond VA10XB2/R2 Patisserie Display Counter, 1038mm is a commercial refrigerated display solution designed for bakeries, cafes and food service establishments requiring presented chilled display space. Measuring 1038mm in width with a depth of 906mm and height of 1352mm, it features a 604mm deep EURONORM and GASTRONORM display section along with two intermediate shelves to organize cakes, pastries, desserts and cold food items efficiently.
Ventilated cooling distributes chilled air across the display area within a temperature range of +2°C to +6°C. Automatic defrosting with automatic condensate evaporation simplifies routine maintenance, while double-row LED lighting, sliding rear Plexiglas doors and low-voltage anti-fogging devices on the glass panes ensure clear product visibility throughout daily operation.
- Product type: Patisserie Display Counter
- Brand: Diamond
- Range: Metrika Line
- EURONORM and GASTRONORM showcase depth: 604 mm
- Colour: Stainless Steel
- Stainless steel working tablet and AISI 304 stainless steel display section
- Wood side cheeks and front with white melamine surface and ABS edge
- Charcoal-grey aluminium molding and skirting
- Tempered glass panes with 90° opening and folding front pane with safety stop
- Integrated 12V low-voltage anti-fogging devices on hinge and side panes
- Plexiglas deflector for homogeneous temperature distribution
- Sliding rear Plexiglas doors
- Built-in compressor unit
- Ventilated evaporator treated against corrosion from food acids
- Adjustable stainless steel feet
- Ventilated cooling
- Automatic defrosting with automatic condensate evaporation
- Temperature range: +2°C to +6°C
- Power rating: 460 W
- Refrigerant: R290
- Climate class: 3
- Maximum ambient temperature: 25°C at 60% relative humidity
- Built in compliance with CE standards
- 2 intermediate shelves
- Double-row LED lighting with On-Off switch
- Power supply: 230V / 50Hz
- Product weight: 171 kg
- Dimensions - H-135.2 W-103.8 D-90.6
- One-year parts only warranty
| Product type |
Patisserie Display Counter |
| Brand |
Diamond |
| SKU |
VA10XB2-R2 |
| Width |
1038 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product weight |
171 kg |
| Cooling type |
Ventilated |
| Defrost type |
Automatic |
| Temperature range |
+2°C to +6°C |
| Refrigerant |
R290 |
| Climate class |
3 |
| Max ambient temperature |
25°C at 60% relative humidity |
| Number of shelves |
2 |
| Wattage |
460W |
| Voltage |
230V |
| Power supply |
230/1N 50HZ |
| Lighting type |
LED (double row) |
| Warranty |
1 Year Parts Only |
