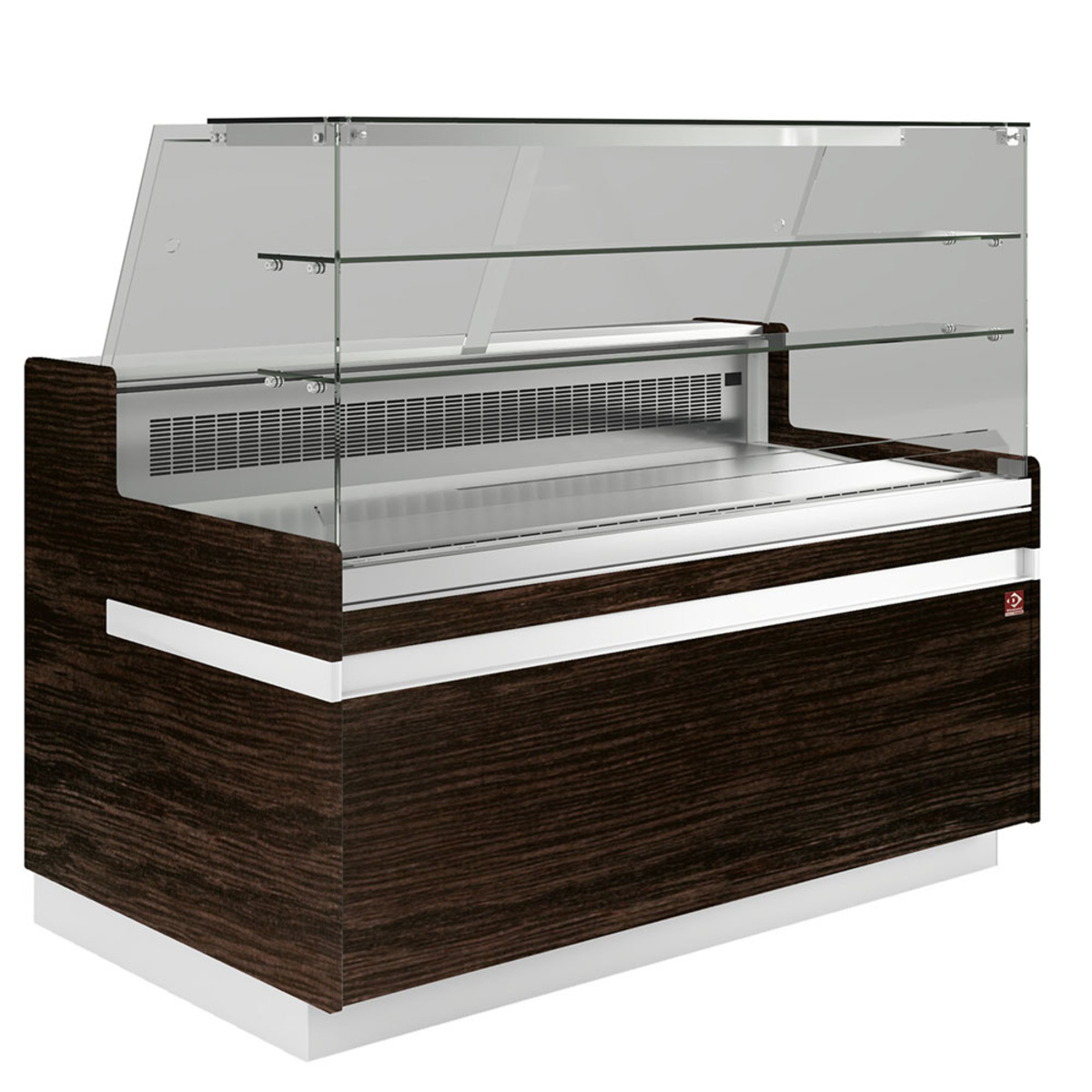

The Diamond VA13XD3/R2 Patisserie Display Counter, 1338mm is designed for commercial catering environments, bakeries, cafes and patisseries requiring refrigerated display space for desserts, cakes, pastries, salads and drinks. Featuring a 1338mm overall width, EURONORM and GASTRONORM display capacity with a 604mm deep AISI 304 stainless steel display unit, two intermediate shelves and high tempered glass windows, it provides organized presentation for chilled food products.
Ventilated cooling distributes chilled air via a Plexiglas deflector for consistent temperature distribution, while automatic defrosting handles condensate evaporation. Operating between +2°C and +6°C, the display counter incorporates an anti-fogging device on the glass, double-row LED lighting, sliding Plexiglas rear doors, a built-in compressor running on R290 refrigerant and a 540W power rating.
- Product type: Commercial Patisserie Display Counter
- Brand: Diamond
- Range: Metrika Line
- 604mm deep display area for EURONORM and GASTRONORM capacity
- Colour: Stainless steel and dark wood
- AISI 304 stainless steel display unit and working shelf
- Plasticized steel sheet frame with CFC-free polyurethane insulation
- Tempered Extra Clear glass panes
- 90° opening and folding front pane with safety stop
- Integrated low-voltage 12V anti-fogging device
- Ventilated evaporator treated against corrosion from food acids
- Plexiglas deflector for temperature distribution
- Automatic defrosting with automatic evaporation of condensates
- Temperature range: +2°C to +6°C
- Built-in compressor unit
- Refrigerant: R290
- Wattage: 540W
- Climate class: 3
- Max ambient temperature: 25°C at 60% relative humidity
- Sliding Plexiglas rear doors
- 2 intermediate shelves
- Adjustable stainless steel feet
- Double-row LED lighting with On-Off switch
- Power supply: 230V / 50Hz
- Product weight: 213 kg
- Dimensions - H-135.2 W-133.8 D-90.6
- One-year parts only warranty
| Width |
1338 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product weight |
213 kg |
| Temperature range |
+2°C to +6°C |
| Refrigerant |
R290 |
| Wattage |
540W |
| Voltage |
230V |
| Power supply |
230/1N 50HZ |
| Climate class |
3 |
| Max ambient temperature |
25°C at 60% relative humidity |
| Number of shelves |
2 |
| Cooling type |
Ventilated |
| Defrost type |
Automatic |
| Warranty |
1 Year Parts Only |
