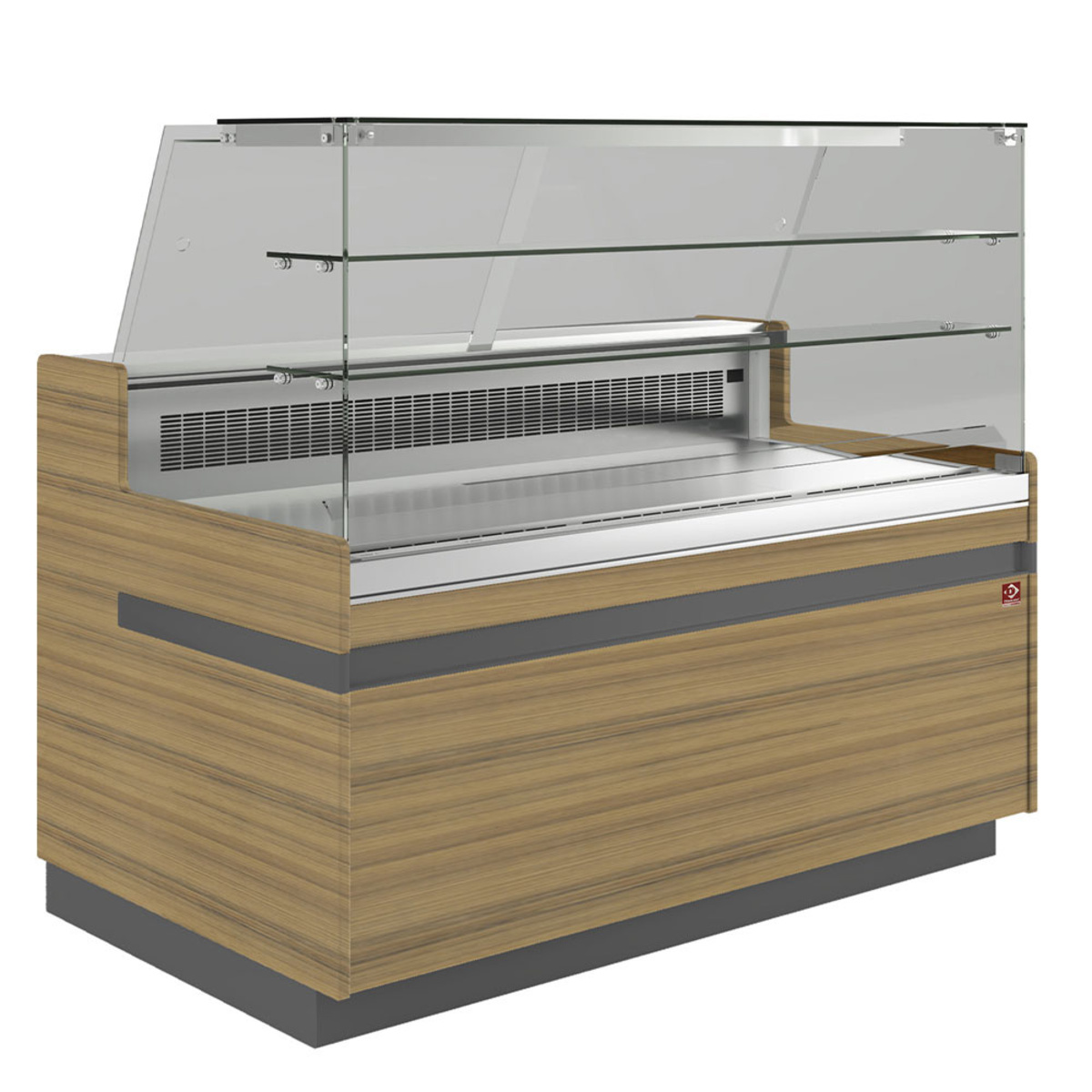

The Diamond VA13XE2/R2 Patisserie Display Counter, 1338mm is a commercial refrigerated display unit designed for patisseries, bakeries, cafes and food service establishments requiring temperature-controlled product presentation. Measuring 1338mm in width, 906mm in depth and 1352mm in height, this unit features a 604mm deep display area suitable for Euronorm and Gastronorm presentation plates across two intermediate shelves and a base level.
Ventilated cooling circulates chilled air throughout the display area to maintain consistent conditions between +2°C and +6°C. Automatic defrosting with condensate evaporation simplifies routine maintenance, while R290 refrigerant gas and a climate class 3 rating support performance in ambient conditions up to 25°C at 60% relative humidity.
- Product type: Patisserie display counter
- Brand: Diamond
- Range: Metrika Line
- Display area depth: 604 mm
- Colour: Medium wood and charcoal grey
- Stainless steel working tablet and showcases
- Plasticized steel sheet frame with polyurethane insulation
- Ventilated cooling with Plexiglas deflector
- Automatic defrosting with automatic evaporation of condensates
- Extra Clear tempered glass panes
- 90° opening and folding front pane with safety stop
- Integrated 12V anti-fogging device in hinge and side panes
- Sliding Plexiglas rear doors
- Adjustable stainless steel feet
- Ventilated evaporator treated against food acids
- Temperature range: +2°C to +6°C
- Refrigerant: R290
- Climate class: 3
- Max ambient temperature: 25°C at 60% relative humidity
- 2 intermediate shelves
- Double row LED lighting with On-Off switch
- Power supply: 230/1N 50Hz
- Voltage: 230V
- Wattage: 540W
- Product weight: 213 kg
- Dimensions - H-135.2 W-133.8 D-90.6
- One-year parts only warranty
| Brand |
Diamond |
| SKU |
VA13XE2-R2 |
| Product type |
Patisserie Display Counter |
| Width |
1338 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product weight |
213 kg |
| Temperature range |
+2°C to +6°C |
| Cooling type |
Ventilated |
| Defrost type |
Automatic |
| Refrigerant |
R290 |
| Climate class |
3 |
| Max ambient temperature |
25°C at 60% relative humidity |
| Wattage |
540W |
| Voltage |
230V |
| Power supply |
230/1N 50HZ |
| Number of shelves |
2 |
| Warranty |
1 Year Parts Only |
