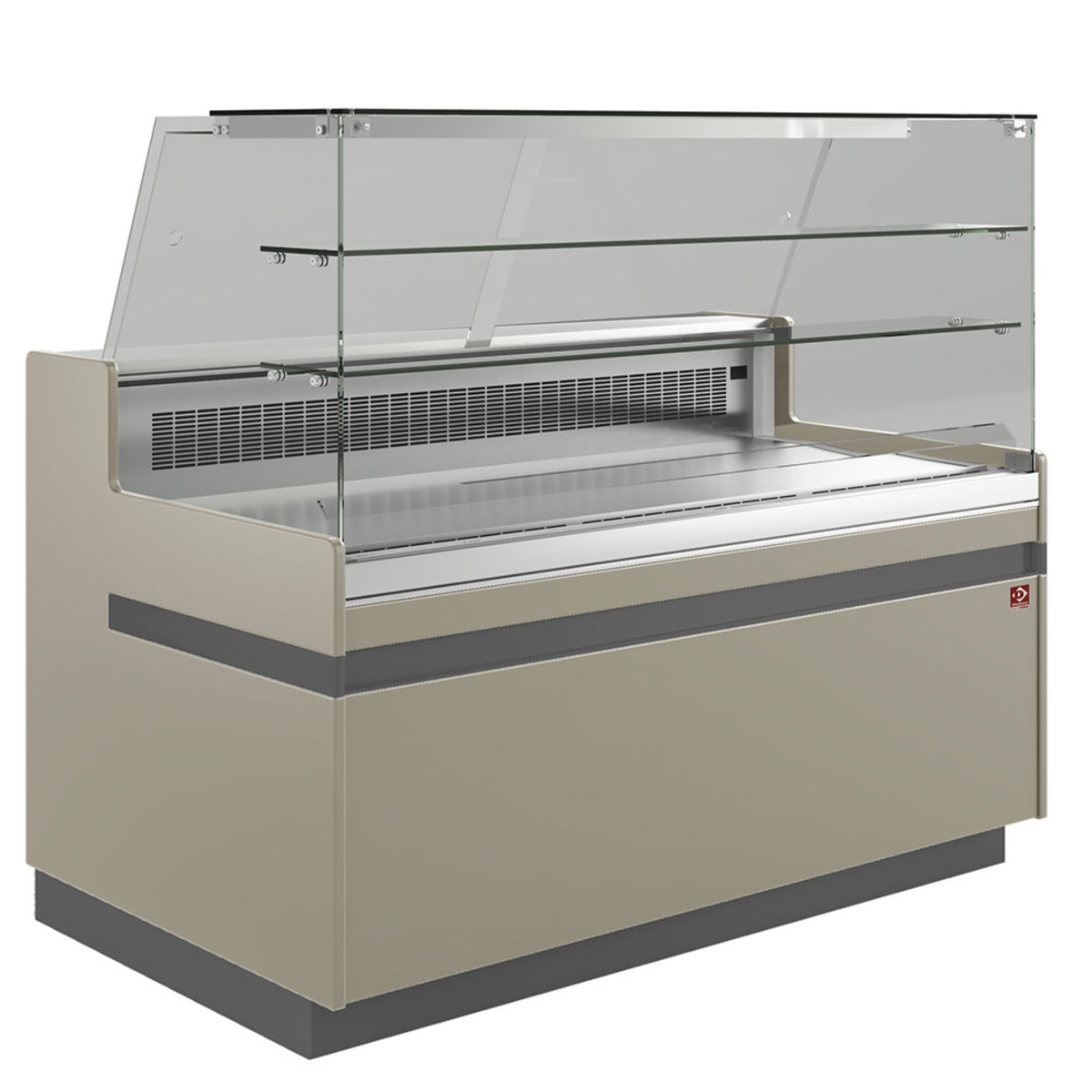

The Diamond VA10XC2/R2 Patisserie Display Counter, 1038mm is a commercial refrigerated display solution designed for bakeries, cafes, patisseries and food service venues requiring reliable chilled food presentation. Featuring a 1038mm width and designed to accommodate EURONORM and GASTRONORM display plates, it provides structured display space across removable anthracite plates, two intermediate shelves and a stainless steel working tablet for efficient service.
Ventilated cooling circulates air evenly using a Plexiglas deflector, while automatic defrosting with condensate evaporation supports straightforward maintenance. The display counter operates within a temperature range of +2°C to +6°C, utilizes eco-friendly R290 refrigerant and features a built-in compressor unit with low-voltage anti-fogging devices on the glass.
- Product type: Patisserie Display Counter
- Brand: Diamond
- Colour: Stainless Steel
- Stainless steel working tablet
- EURONORM and GASTRONORM showcases in AISI 304 stainless steel with rounded corners
- Side cheeks and front in wood with taupe melamine surface and charcoal-gray skirting
- Frame made of plasticized steel sheet
- CFC-free polyurethane insulation
- Tempered Extra Clear glass panes with 90° opening and folding front pane
- Low-voltage 12V integrated anti-fogging device
- Sliding Plexiglas doors on service side
- Ventilated evaporator treated against food acid corrosion
- Plexiglas deflector for homogeneous temperature distribution
- Adjustable stainless steel sliding feet
- Temperature range: +2°C to +6°C
- Cooling type: Ventilated
- Defrost type: Automatic
- Refrigerant: R290
- Climate class: 3
- Max ambient temperature: 25°C at 60% relative humidity
- Built in compliance with CE standards
- 2 intermediate shelves
- Removable color-treated stainless steel showcases
- Double row LED lighting with On-Off switch
- Power supply: 230/1N 50Hz
- Voltage: 230V
- Wattage: 460W
- Product weight: 171kg
- Dimensions - H-135.2 W-103.8 D-90.6
- One-year parts only warranty
| Brand |
Diamond |
| Model SKU |
VA10XC2-R2 |
| Product Type |
Patisserie Display Counter |
| Width |
1038 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product Weight |
171 kg |
| Temperature Range |
+2°C to +6°C |
| Cooling Type |
Ventilated |
| Defrost Type |
Automatic |
| Refrigerant |
R290 |
| Wattage |
460W |
| Voltage |
230V |
| Power Supply |
230/1N 50HZ |
| Climate Class |
3 |
| Max Ambient Temperature |
25°C at 60% relative humidity |
| Number of Shelves |
2 |
| Warranty |
1 Year Parts Only |
