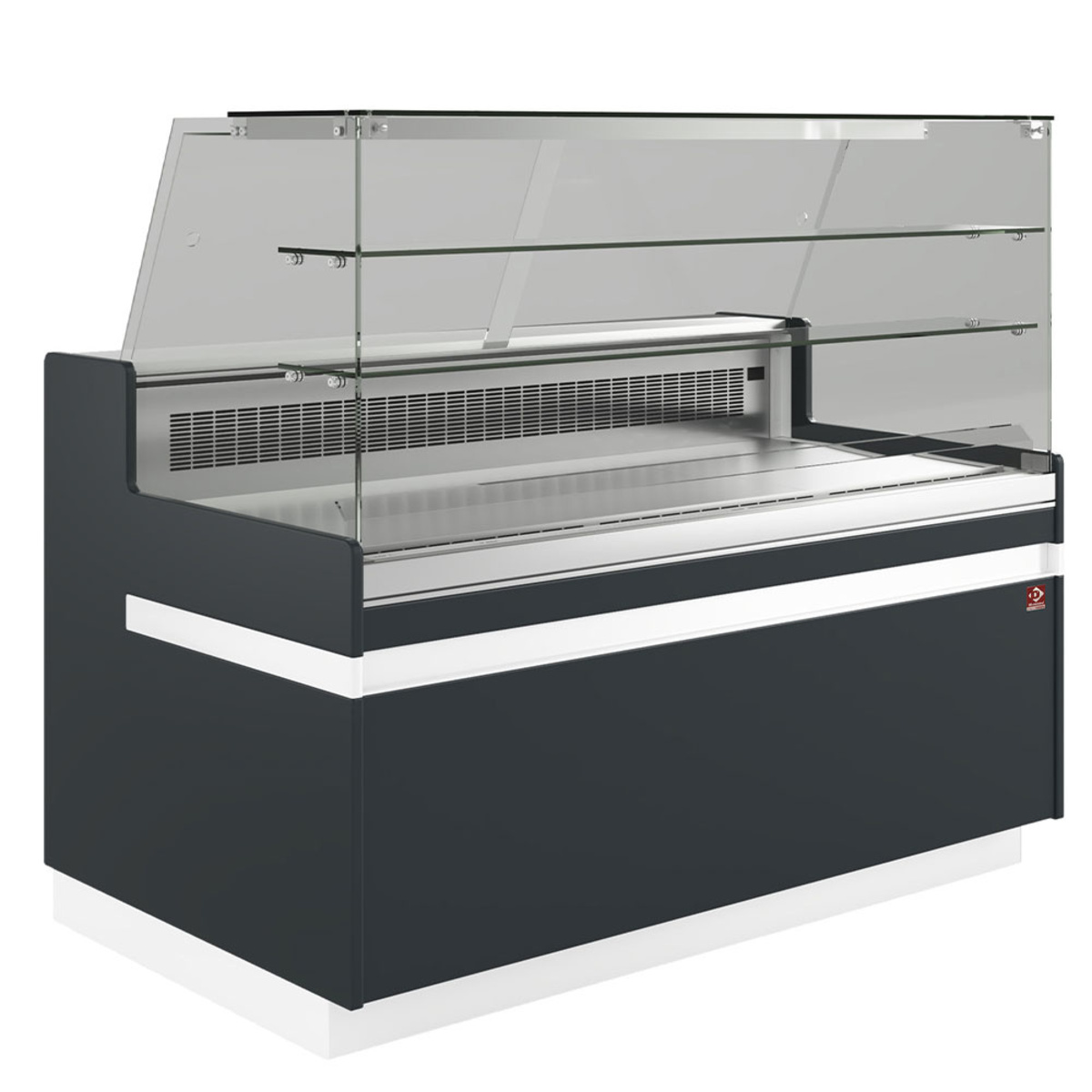

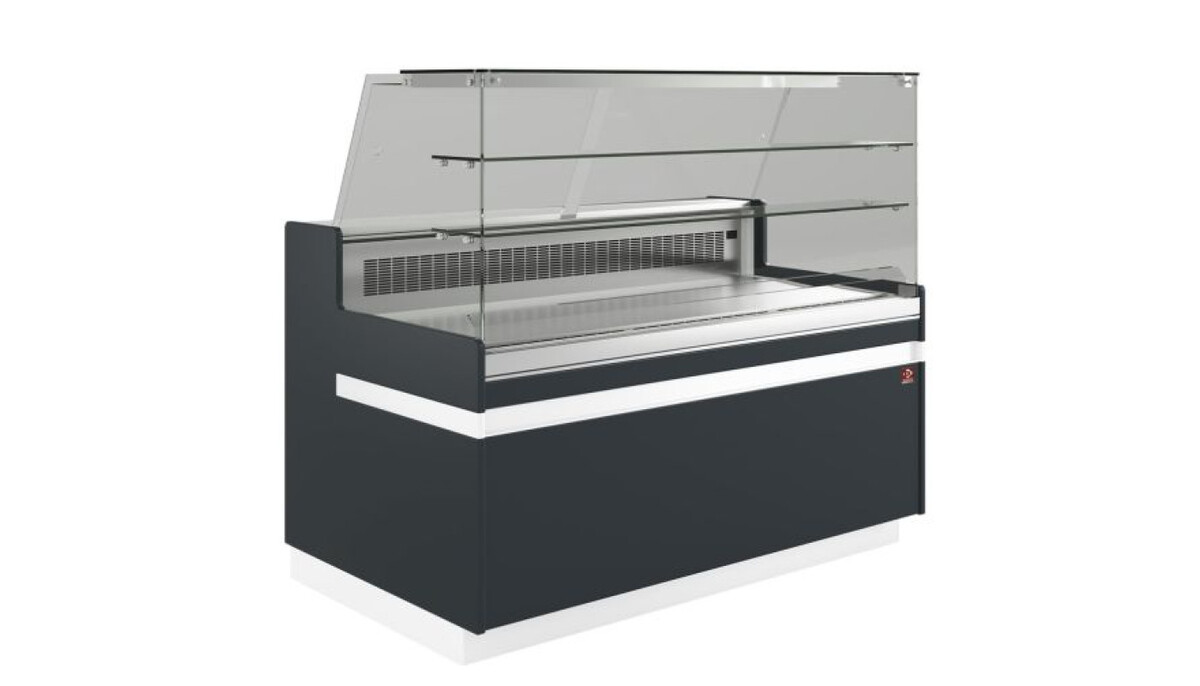

The Diamond VA10XA1/R2 Patisserie Display Counter, 1038mm is designed for commercial catering environments requiring refrigerated display for patisserie and food items. With a width of 1038 mm, depth of 906 mm, and height of 1352 mm, it provides dedicated display space utilizing EURONORM and GASTRONORM showcases 604 mm deep. It suits bakeries, cafes, and food service venues seeking a serve-over refrigerated counter.
A ventilated evaporator treated against corrosion circulates air, while a built-in compressor operates using R290 refrigerant within a +2°C to +6°C temperature range. Automatic defrosting with automatic condensate evaporation simplifies maintenance, and double-row LED lighting with an On-Off switch illuminates displayed contents.
- Product type: Commercial Refrigerated Patisserie Display Counter
- Brand: Diamond
- AISI 304 stainless steel EURONORM and GASTRONORM showcases 604 mm deep
- Colour: Stainless Steel
- Stainless steel exterior with plasticized steel sheet frame and CFC-free polyurethane insulation
- Extra clear tempered glass panes
- 90° opening and folding front pane with safety stop
- Integrated 12V low-voltage anti-fogging device in hinge, side panes, and worktop
- Removable colour-treated stainless steel display showcases
- Plexiglas deflector for homogeneous temperature distribution
- Service side sliding Plexiglas doors and stainless steel working shelf
- Ventilated evaporator treated against corrosion from food acids
- Automatic defrosting with automatic condensate evaporation
- Adjustable sliding stainless steel feet
- CE compliant
- Temperature range: +2°C to +6°C
- Climate class: 3
- Maximum ambient temperature: 25°C at 60% relative humidity
- Intermediate shelf with AISI 304 stainless steel support structure
- Double-row LED lighting with On-Off switch
- Power supply: 230V / 1N / 50Hz
- Wattage: 460 W
- Product weight: 171 kg
- Dimensions - H-135.2 W-103.8 D-90.6
- 1-year parts only warranty
| Brand |
Diamond |
| SKU |
VA10XA1-R2 |
| Product type |
Patisserie Display Counter |
| Width |
1038 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product Weight |
171 kg |
| Colour |
Stainless Steel |
| Temperature Range |
+2°C to +6°C |
| Refrigerant |
R290 |
| Wattage |
460W |
| Voltage |
230V |
| Power Supply |
230/1N 50HZ |
| Climate Class |
3 |
| Max Ambient Temperature |
25°C at 60% relative humidity |
| Defrost Type |
Automatic |
| Warranty |
1 Year Parts Only |
