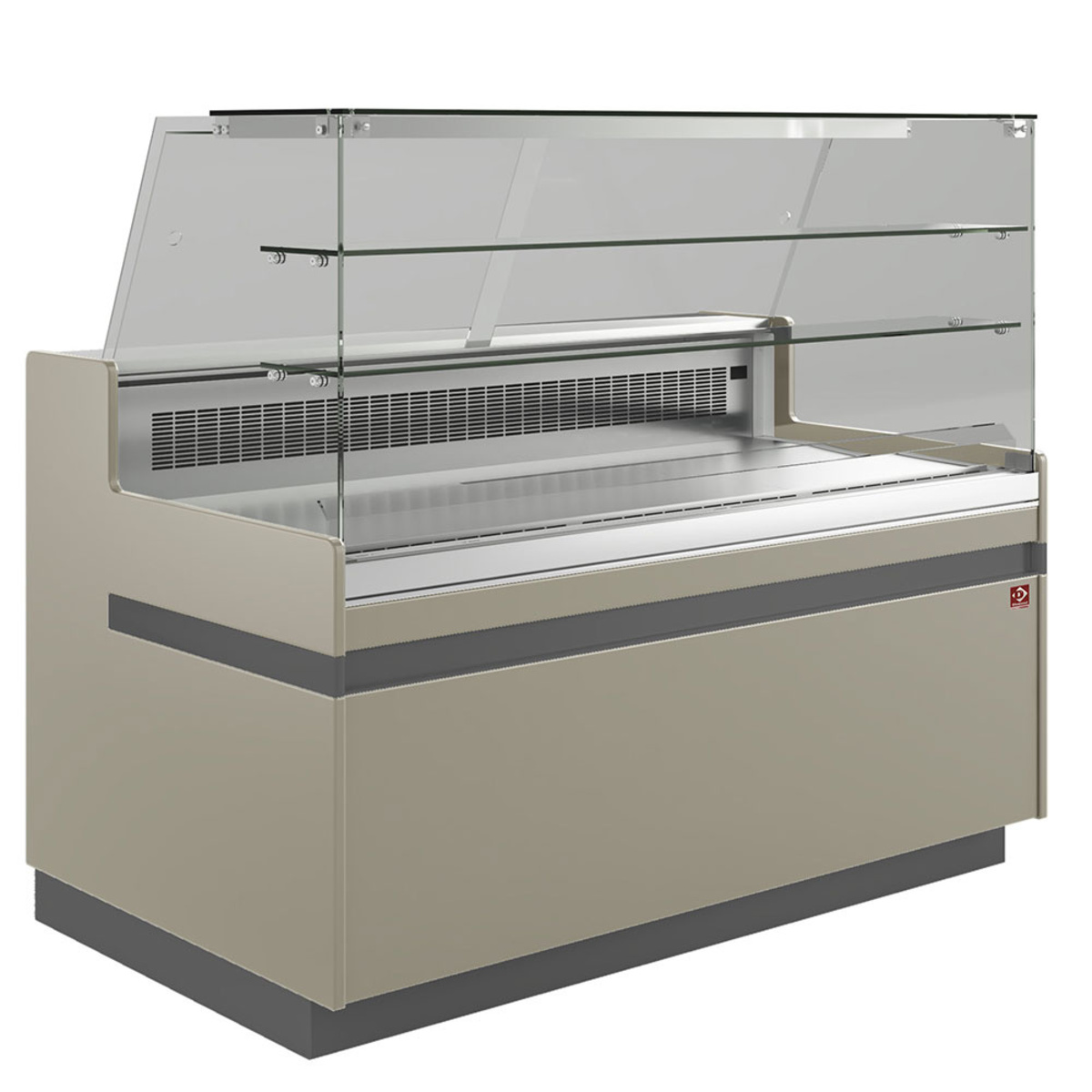

The Diamond VA13XC2/R2 Patisserie Display Counter, 1338mm is a commercial refrigerated display solution for patisseries, bakeries and foodservice businesses requiring chilled product presentation. Featuring a width of 1338mm, depth of 906mm and height of 1352mm, this counter includes two intermediate shelves and an exposure area with capacity for three 400x600 Euronorm plates or Gastronorm containers.
Ventilated cooling circulates air evenly using a corrosion-treated evaporator, while automatic defrosting with condensate evaporation simplifies ongoing maintenance. The counter operates between +2°C and +6°C in climate class 3 conditions up to 25°C ambient temperature, using R290 refrigerant and a built-in 540W compressor unit.
- Product type: Patisserie Display Counter
- Brand: Diamond
- Showcase capacity: 3 Euronorm plates (400x600) or Gastronorm
- Showcase depth: 604 mm
- Colour: Stainless steel
- AISI 304 stainless steel showcases with rounded corners and edges
- Working tablet in AISI 304 stainless steel
- Frame made of plasticized steel sheet
- Taupe wood front and side cheeks with ABS edge
- Charcoal-gray skirting and aluminium molding
- Extra Clear tempered glass panes
- CFC-free polyurethane insulation
- Ventilated evaporator treated against corrosion from food acids
- Automatic defrosting with automatic condensate evaporation
- 90° opening and folding front pane with safety stop
- Integrated 12V anti-fogging device on hinge and side panes
- Plexiglas deflector for homogeneous temperature distribution
- Service side sliding Plexiglas doors
- Adjustable stainless steel sliding feet
- Temperature range: +2°C to +6°C
- Power rating: 540 W
- Refrigerant: R290
- Climate class: 3
- Max ambient temperature: 25°C at 60% relative humidity
- Built in compliance with CE standards
- Number of shelves: 2 intermediate shelves
- Removable colour-treated stainless-steel showcases
- Double row LED lighting with On-Off switch
- Voltage: 230 V
- Power supply: 230/1N 50Hz
- Product weight: 213 kg
- Dimensions - H-135.2 W-133.8 D-90.6
- One-year parts only warranty
| Brand |
Diamond |
| SKU |
VA13XC2-R2 |
| Product type |
Patisserie Display Counter |
| Width |
1338 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product weight |
213 kg |
| Temperature range |
+2°C to +6°C |
| Wattage |
540 W |
| Voltage |
230 V |
| Power supply |
230/1N 50Hz |
| Refrigerant |
R290 |
| Climate class |
3 |
| Max ambient temperature |
25°C at 60% relative humidity |
| Number of shelves |
2 |
| Cooling type |
Ventilated |
| Defrost type |
Automatic |
| Warranty |
1 Year Parts Only |
