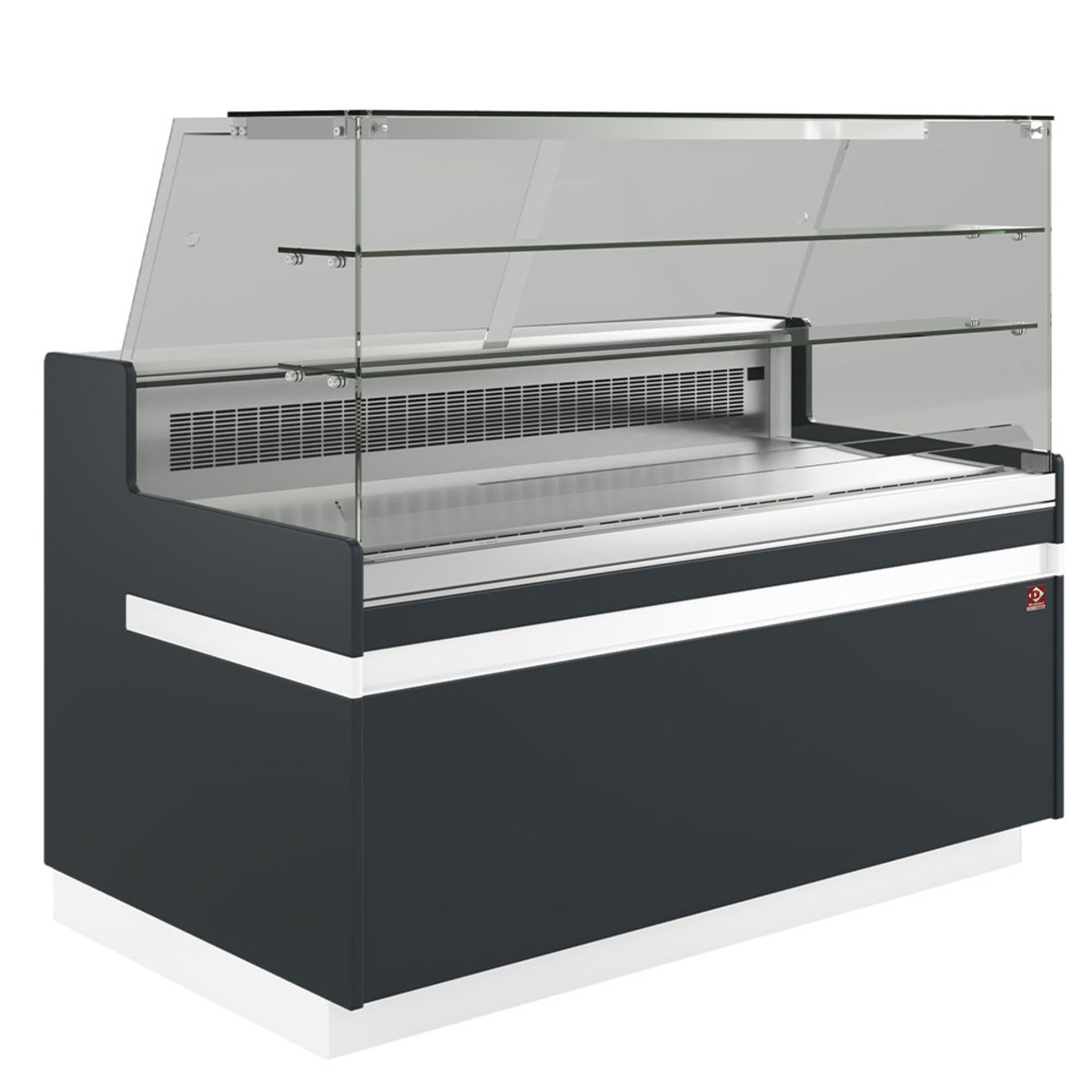

The Diamond VA13XA1/R2 Patisserie Display Counter, 1338mm is designed for commercial catering establishments, bakeries and patisseries requiring chilled presentation of baked goods and desserts. Measuring 1338mm in width, 906mm in depth and 1352mm in height, this serve-over unit features a 604mm deep display area suitable for Euronorm capacity of three 400x600mm plates or Gastronorm showcases.
Ventilated refrigeration maintains consistent temperature levels across the counter, operating between +2°C and +6°C using eco-friendly R290 refrigerant. Automatic defrosting with automatic condensate evaporation ensures simple daily maintenance. The unit features a built-in compressor unit, climate class 3 rating, double-row LED lighting, and a 90-degree folding front glass pane for straightforward access and cleaning.
- Product type: Patisserie Display Counter
- Brand: Diamond
- Capacity: Euronorm capacity for three 400x600mm plates or Gastronorm display
- Colour: Stainless Steel
- Frame constructed from plasticized steel sheet with CFC-free polyurethane insulation
- Extra clear tempered glass panes
- 90° opening and folding front glass pane with safety stop and integrated 12V anti-fogging device
- Integrated 12V anti-fogging device on side panes, hinge, and under working shelf
- AISI 304 stainless steel showcases and working shelf
- Sliding rear Plexiglas doors
- Plexiglas deflector for uniform temperature distribution
- Ventilated evaporator with corrosion protection against food acids
- Adjustable sliding stainless steel feet
- Temperature range: +2°C to +6°C
- Power rating: 540W
- Refrigerant: R290
- Defrost type: automatic with automatic condensate evaporation
- Climate class: 3
- Maximum ambient temperature: 25°C at 60% relative humidity
- Built in compliance with CE standards
- Number of shelves: 2 intermediate shelves
- Removable stainless steel showcases
- Lighting: double-row LED lighting with on-off switch
- Voltage: 230V
- Power supply: 230/1N 50Hz
- Product weight: 213 kg
- Dimensions - H-135.2 W-133.8 D-90.6
- Warranty: 1-year parts only warranty
| Brand |
Diamond |
| SKU |
VA13XA1-R2 |
| Product type |
Patisserie Display Counter |
| Width |
1338 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product weight |
213 kg |
| Temperature range |
+2°C to +6°C |
| Refrigerant |
R290 |
| Wattage |
540W |
| Voltage |
230V |
| Power supply |
230/1N 50HZ |
| Climate class |
3 |
| Max ambient temperature |
25°C at 60% relative humidity |
| Number of shelves |
2 |
| Defrost type |
Automatic |
| Warranty |
1 Year Parts Only |
