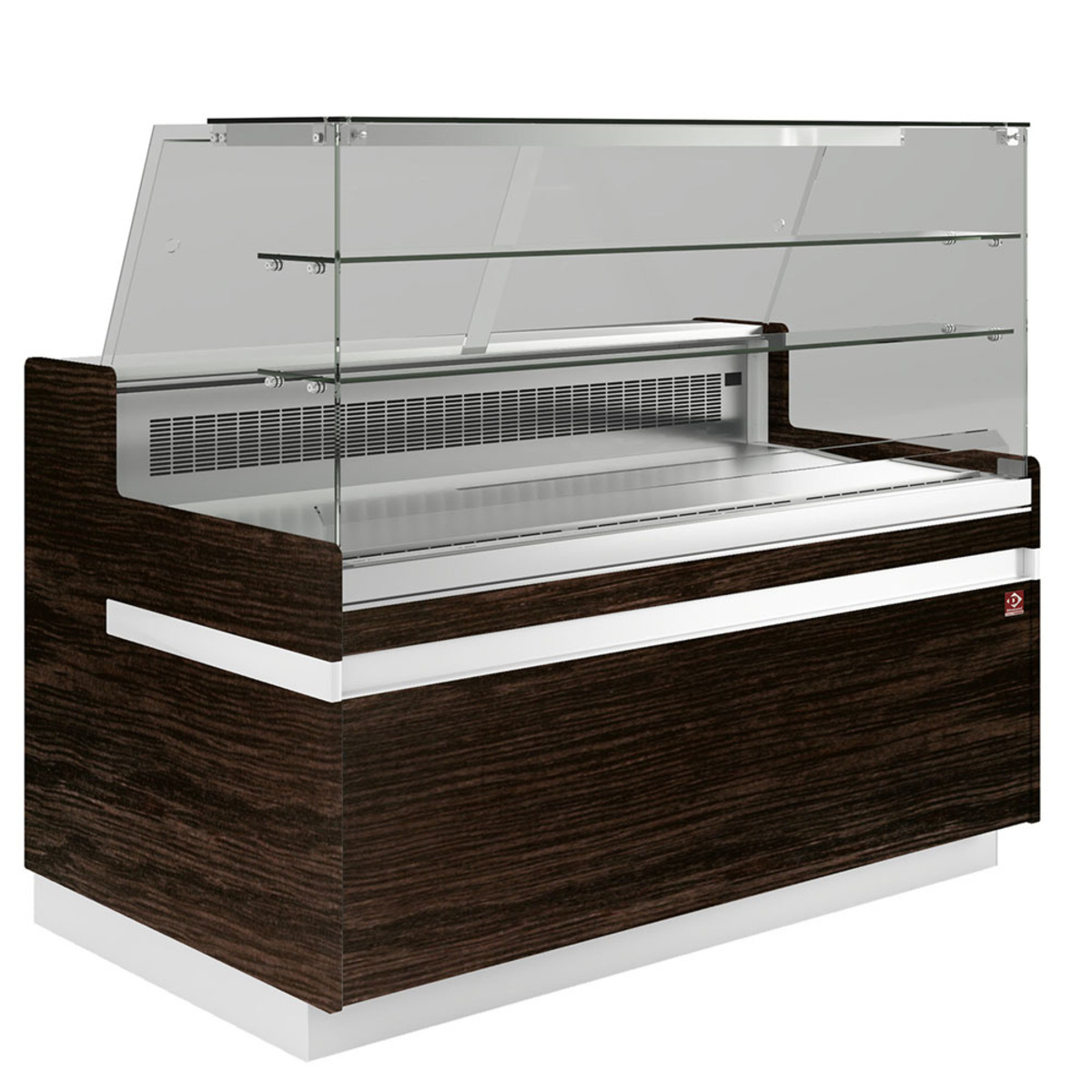

The Diamond VA10XD3/R2 Patisserie Display Counter, 1038mm is a commercial refrigeration solution for bakeries, patisseries and catering establishments requiring chilled product display and clear organization. Featuring a width of 1038mm, 604mm deep AISI 304 stainless steel showcases and two intermediate shelves, it offers dedicated space for Euronorm and Gastronorm food items while supporting consistent day-to-day serving operations.
Ventilated cooling distributes chilled air via a Plexiglas deflector for homogeneous temperature control, while automatic defrosting with condensate evaporation reduces manual maintenance. The unit operates between +2°C and +6°C, utilizes R290 refrigerant gas and features a built-in climate class 3 compressor unit powered at 460W.
- Product type: Patisserie Display Counter
- Brand: Diamond
- Number of shelves: 2 intermediate shelves
- Colour: Stainless Steel
- Frame material: plasticized steel sheet with CFC-free polyurethane insulation
- Showcase material: AISI 304 stainless steel
- Working tablet: stainless steel
- Tempered glass Extra Clear panes with 90° opening front pane
- Ventilated cooling with Plexiglas deflector
- Automatic defrosting with condensate evaporation
- Integrated low voltage 12V anti-fogging device
- Removable color-treated stainless steel showcases
- Removable anthracite plates for Euronorm and Gastronorm display
- Sliding Plexiglas doors on service side
- Adjustable stainless steel sliding feet
- Temperature range: +2°C to +6°C
- Refrigerant: R290
- Climate class: 3
- Max ambient temperature: 25°C at 60% relative humidity
- Compliance: CE standards
- Double row LED lighting with On-Off switch
- Power supply: 230V / 1N / 50Hz
- Wattage: 460 W
- Product weight: 171 kg
- Dimensions - H-135.2 W-103.8 D-90.6
- One-year parts only warranty
| Brand |
Diamond |
| Model SKU |
VA10XD3-R2 |
| Width |
1038 mm |
| Depth |
906 mm |
| Height |
1352 mm |
| Product weight |
171 kg |
| Temperature range |
+2°C to +6°C |
| Cooling type |
Ventilated |
| Defrost type |
Automatic |
| Refrigerant |
R290 |
| Climate class |
3 |
| Max ambient temperature |
25°C at 60% relative humidity |
| Wattage |
460W |
| Voltage |
230V |
| Power supply |
230/1N 50HZ |
| Number of shelves |
2 |
| Warranty |
1 Year Parts Only |
